Our top aluminum 29er hardtail is perfectly equipped for speed.
The Overdrive 29 3 is our top-level 29er aluminum hardtail. It’s built on a strong and light aluminum frame to keep you nimble and in control for the ultimate journey. This trail bike is decked out with a RockShox Judy Silver TK SOLO AIR spring 100mm travel fork to keep you flowing through technical terrain and a SRAM SX 1×12-speed drivetrain to maximize your speed and efficiency up and down the hills. Shimano hydraulic disc brakes offer great modulation. For charging the singletrack, big climbing days, and jumping into your local cross-country races, the Overdrive 29 3 offers a lively ride.
| Color | Forest Green Matte |
|---|---|
| Chain | SRAM SX Eagle 12 speed |
| Pedals | DB4L Aluminum Platform w/ Replaceable Pins |
| Saddle | DB Race M-series Saddle |
| Seatpost | DB Aluminum Micro Adjust, 30.9mm |
| Headset | FSA IS 3E / No.11 integrated headset |
| Stem | DB 3D Forged, 7° Rise, 31.8 Bar Bore |
| Tape/Grips | DB "Flanged" Lock-on, 135mm Silicone |
| Handlebars | Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore |
| Brake Levers | Radius Hydraulic |
| Brakes | Radius BH-960 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors |
| Cassette/Freewheel | SRAM 1210 PowerGlide Eagle 11-50t 12 speed |
| Size | Medium |
| Rear Derailleur | SRAM SX Eagle 12 speed |
| Shifters | SRAM SX Eagle 12 Speed |

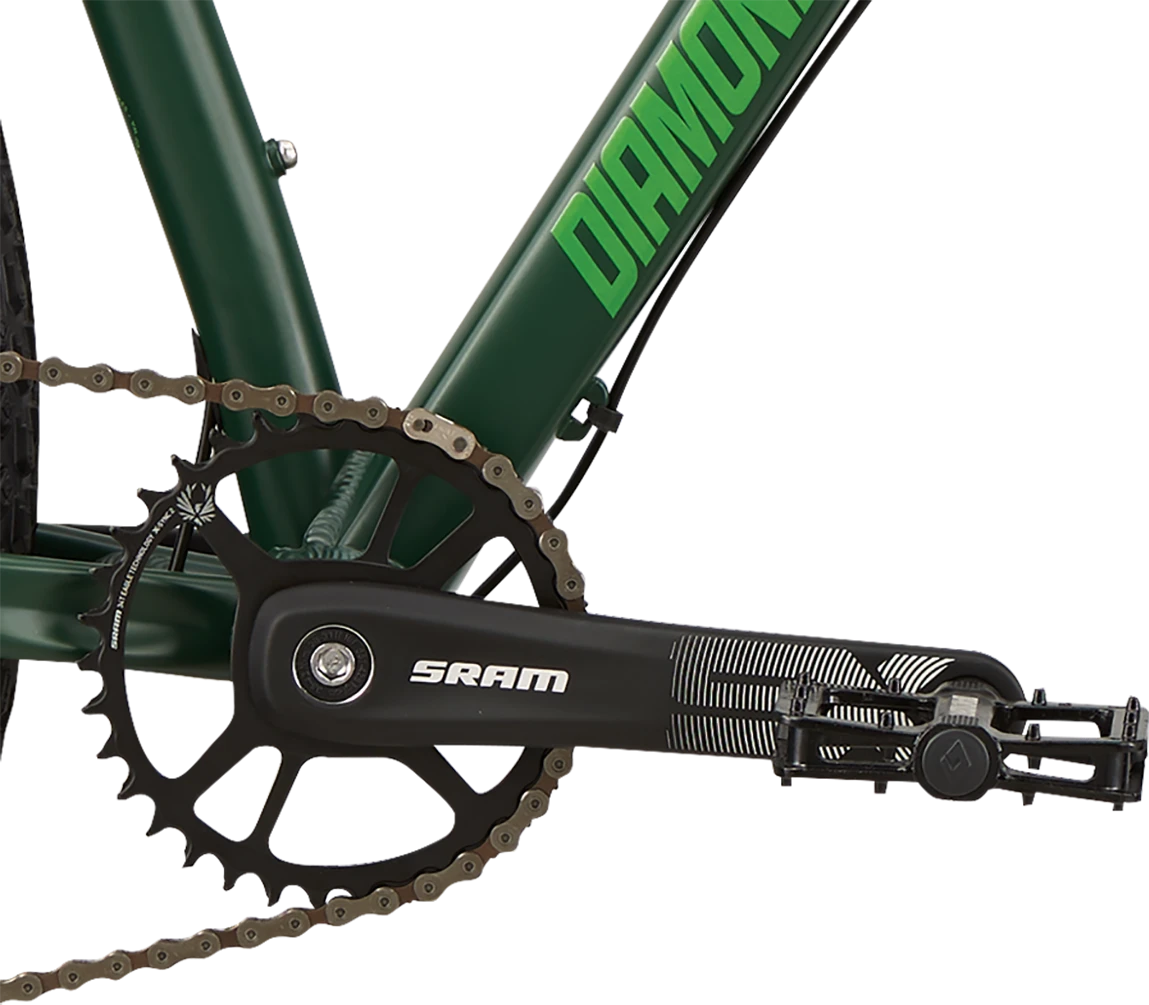

| Crankset | SRAM SX Eagle w / X-Sync 32 Tooth Chainring |
| Bottom Bracket | SRAM Powerspline |
| Tires | VEE Rubber Mission 29" x 2.25 |
| Spokes | 14g Steel |
| Hubs | Front: 32H Aluminum 15mm Thru Axle DiscRear: 32H Aluminum Cassette, 141mm Boost Quick Release, Disc |
| Rims | DB DP-25 Double Wall Alloy Rim, 32H |
| Fork | Rockshox Judy Silver TK SOLO AIR Spring, Turn Key Lockout, 29" 100mm Travel, Boost 15×110 Stealth Thru Axle, Aluminum Steerer |
| Frame | Overdrive 29" Butted 6061-T6 Aluminum Formed Top / Down Tube, Machined Headtube, Forged Dropouts w/ Replaceable Hanger, Quick Release |
| Accessories & Extras | Tool Kit |
